G-Brick is an Insulating structural panel with high mechanical performance recommended as a construction system in passive or high-energy efficiency projects.

Combining Garnica plywood sourced from sustainable plantations with a lightweight element, such as XPS – extruded polystyrene – enhances mechanical performance, resulting in a unique, lightweight, and structurally sound product with excellent thermal and acoustic insulation, which is also environmentally friendly.

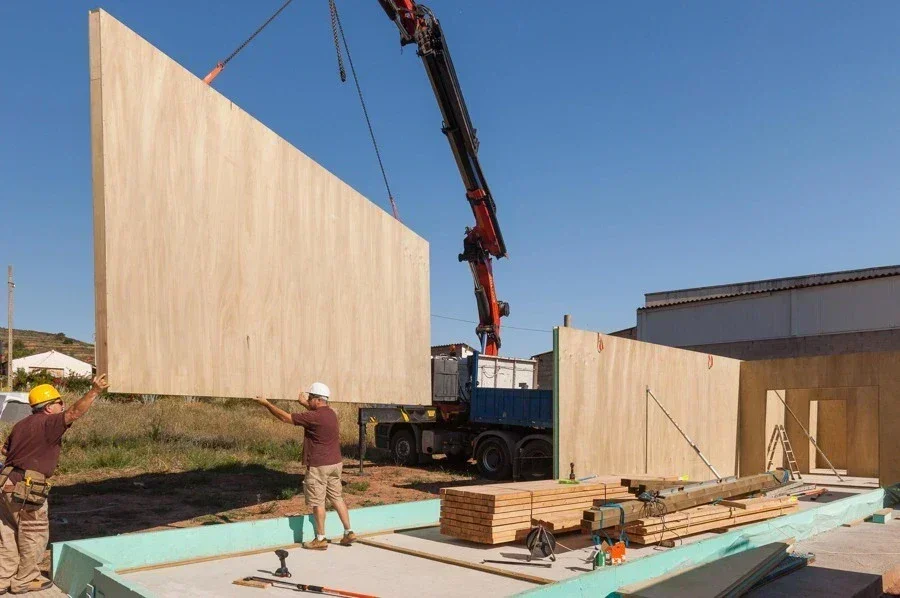

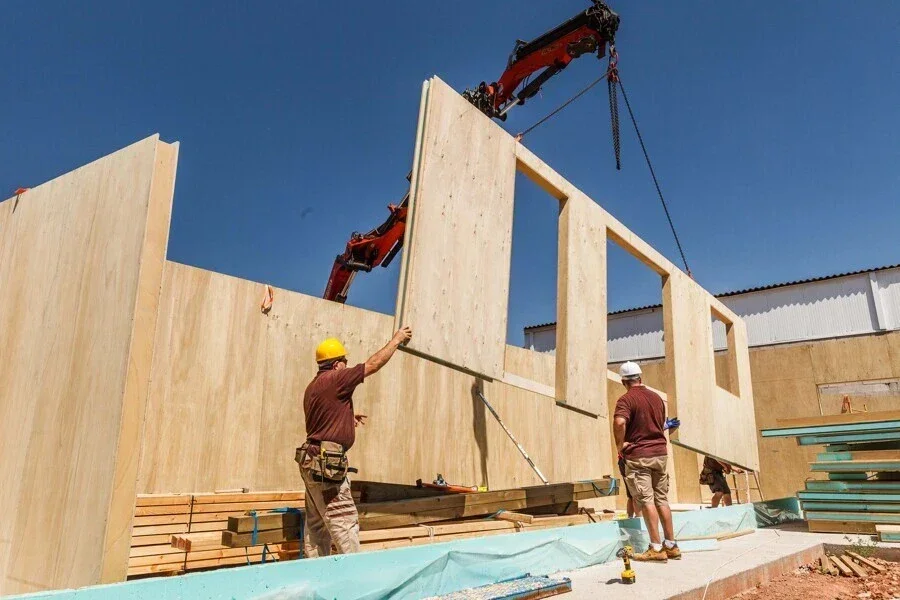

The high degree of industrialisation of the product allows for a significant reduction in time and costs associated with its on-site installation.

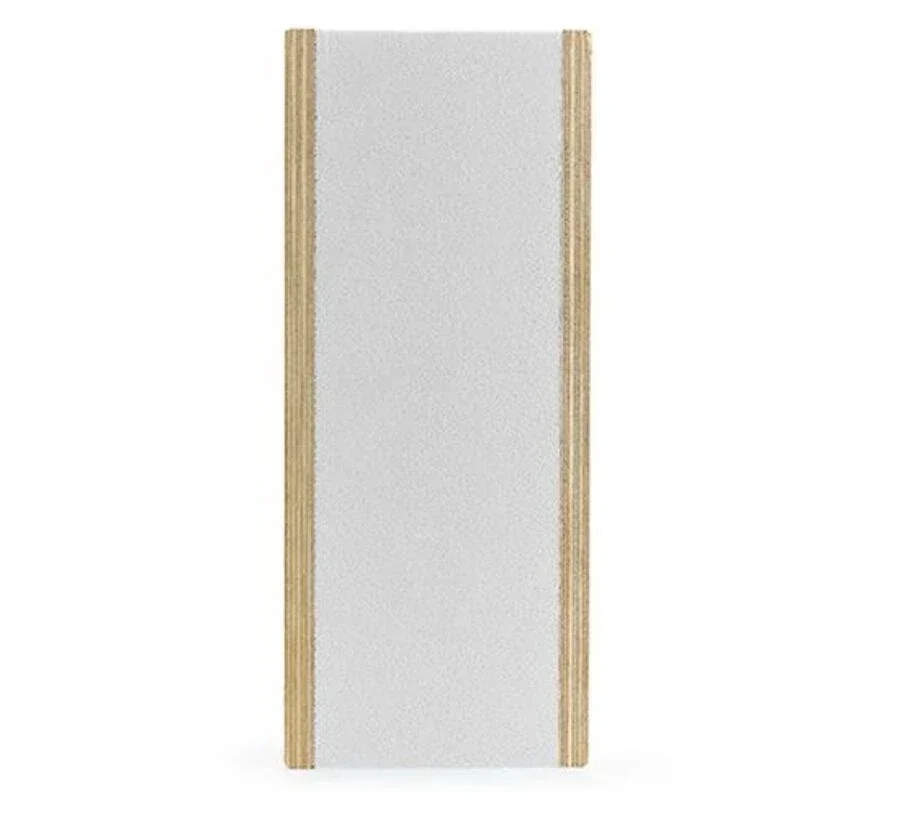

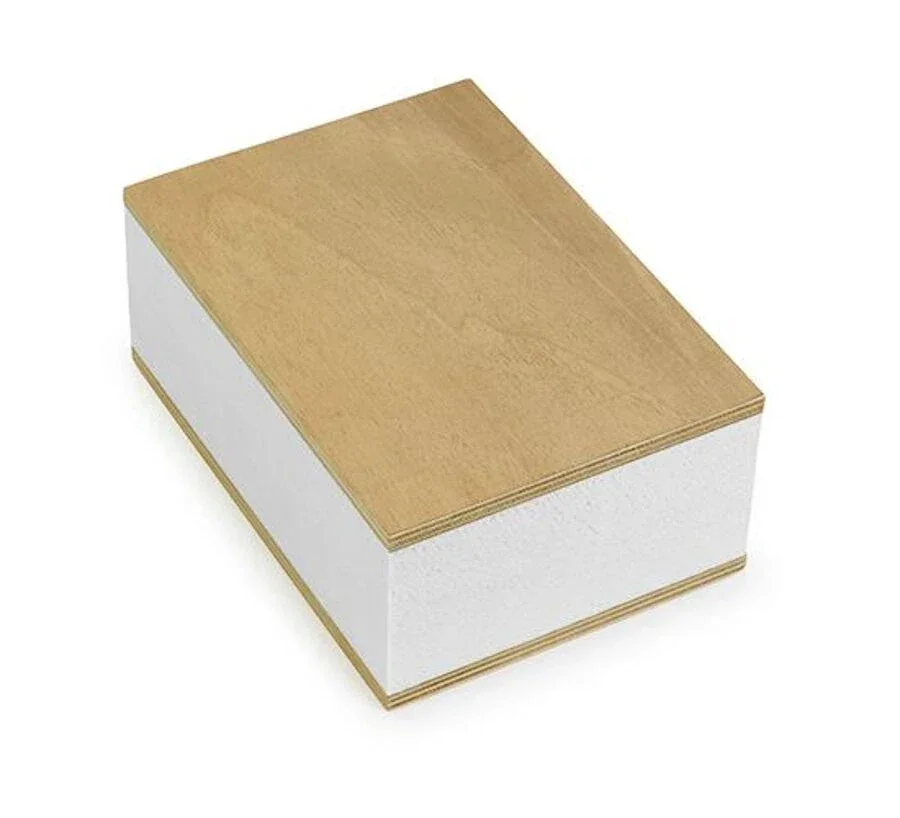

Composition: Duraply BBA 10 mm /XPS core 100 mm/ Poplar Plywood BBA 10 mm

Glue Type: Class III (exterior WBP) A-Bond according to EN 636

Emissions: Class E1 according to EN 13986

Finish: Duraply Poplar BBA on the exterior face, BBA poplar plywood on the internal face.

• Lightweight panels with structural and decorative capabilities.
• Exceptional insulation. Both thermal and acoustic.

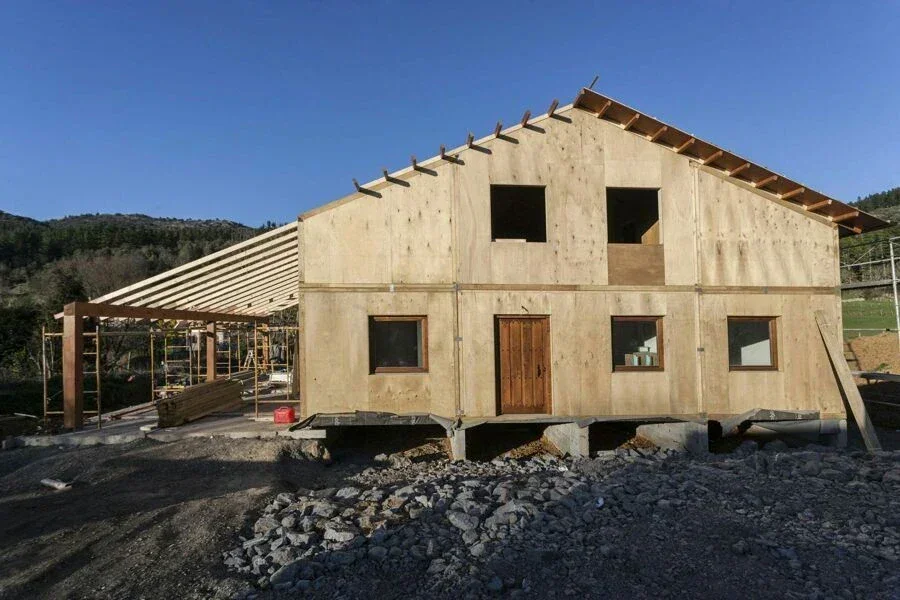

• Passivhaus. Long-life near-zero-energy projects.
• Exceptional properties. High load capacity, dimensional stability and lightness.
• Industrialised product. Reduced handling time and costs.
• Design and versatility, a wide range of formats and finishes available.
• Sustainability. Certified fast-growing European plantations.

XPS Foam Density: 48 kg/m³

Poplar Plywood Density: 426 kg/m³

Duraply Density: 470 kg/m³

Thickness: 120 mm

R value (Thermal Resistance m² x K/W): 3.21

Panel Size: 120x2510x1230 mm

Panel weight 120x2510x1230 mm - 43 kg

Manufacturer: Garnica

Country of origin: Spain, Europe

Manufacturer: Garnica, Spain
